Collaborative public installation / Geneva Lux / 2025—2027

LUMINA

A repeated luminous frame turns a pedestrian passage into a changing field of depth, rhythm and movement. The realtime system is inseparable from the physical architecture.

Role Creative Technologist / Realtime Systems & IntegrationContext Geneva Lux / StripLab / 2025—2027System TouchDesigner / Art-Net / addressable LED
12.05 moverall length
8,556RGB LEDs
25,668DMX channels
51Art-Net universes
60 FPSrealtime output
01

Experience

Light becomes architecture through repetition.

The work is read first as a space rather than as a screen. Nested frames exaggerate perspective and allow colour and temporal behaviour to reorganise the tunnel continuously around the visitor.

Nested structure / spatial depth
Human scale
Installed work
TouchDesignerArt-NetPixLite controladdressable LED
02

My contribution

Fusion 360 structure and fabrication drawings, network planning, LED integration, TouchDesigner programming, realtime light behaviour, budgeting, workshop coordination, groove/profile optimisation with the carpenter, and technical integration on site.

Fabrication / integration archive

From profile
to live system.

Selected workshop footage from the Geneva Lux production archive: profile preparation, LED-strip work and cabling. Each loop opens at a different point in its source timeline.

01 / profile + rainurage
02 / LED strip soldering
03 / cabling + connectors

Design / fabrication

Technical depth,
kept secondary.

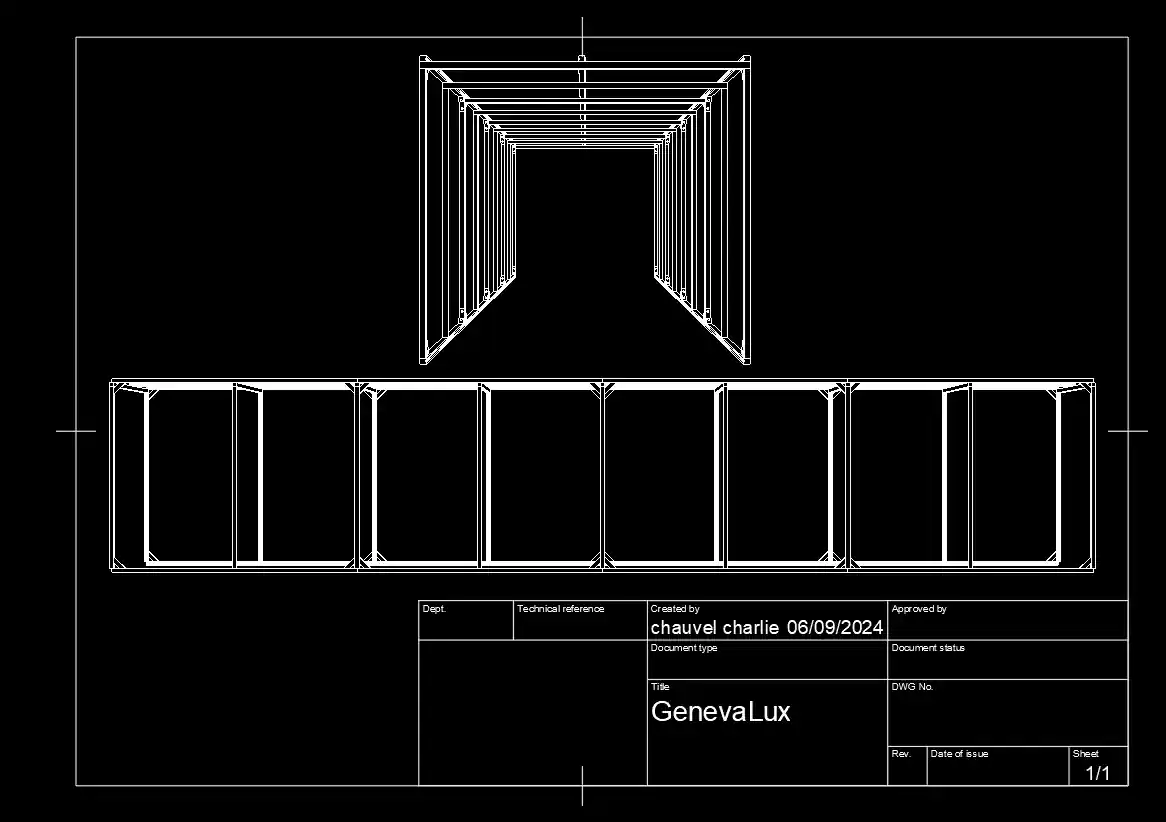

LUMINA general structure drawing
Technical drawing
